In the caravan manufacturing industry, precision is critical, especially in the assembly process where nesting pieces are produced using CNC machines. However, maintaining accuracy in the parts cut by CNC machines can be challenging. Small deviations or imperfections in each part can lead to misalignments, affecting the assembly quality and increasing costs due to rework and waste.
Our solution harnesses high-resolution cameras and machine vision technology to automate the inspection process, ensuring every CNC-cut part meets strict precision standards. This blog explores how machine vision enhances CNC nesting inspections, paving the way for more accurate and efficient manufacturing.

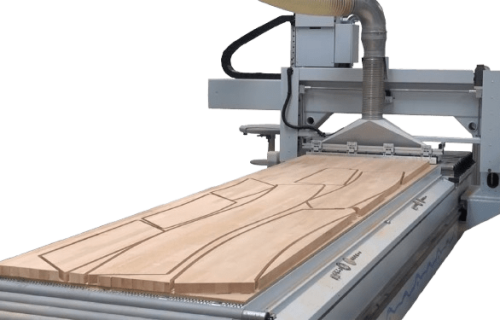

CNC nesting refers to the arrangement and cutting of parts in an efficient pattern to maximize material use and minimize waste. This technique is highly valued in the caravan industry, where precise cuts ensure that various parts fit together seamlessly during assembly. However, traditional inspection methods often fall short in detecting minor deviations or imperfections in CNC-cut parts, leading to issues in the final assembly.
Without precise inspections, these small errors can cascade, leading to alignment issues, weakened structural integrity, and increased material costs due to waste. The caravan industry, like many others, faces an ongoing challenge: How can manufacturers achieve precise, consistent inspections at the pace of production?

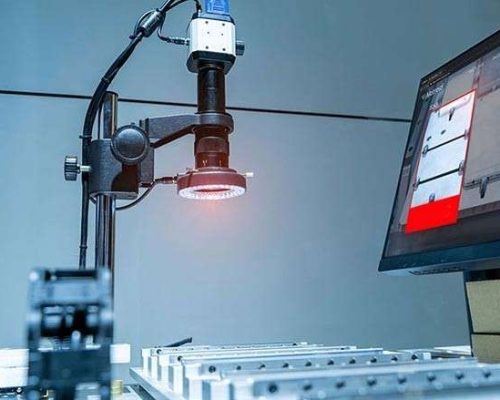

Machine vision offers a powerful solution to the precision challenge in CNC inspections. By using high-resolution cameras, our system captures images of each part immediately after the CNC cutting process. These images undergo thorough analysis using machine vision algorithms designed for tasks like part classification, segmentation, and complex measurement.
A unique aspect of our solution is the use of a reference object within each image to achieve real-world measurements. Since accurately converting pixel data to precise millimeter measurements is challenging, we developed a system where the reference object serves as a scale, enabling high-precision measurements. This approach ensures that each piece meets the millimeter-level tolerances required for caravan assembly, reducing variability and enhancing quality.
To achieve high accuracy in CNC nesting inspections, we developed a model training process that combines Blender-based synthetic data with real-world CNC-cut part data. This hybrid dataset improves model accuracy and generalizability, especially for complex, multi-dimensional parts in caravan manufacturing.
Our dataset includes parts of varying shapes and dimensions, categorized by board type. For each board type, we trained separate YOLOv8 models to classify unique part characteristics. This classification ensures accurate part identification, distinguishing between similar parts for further inspection.
After classification, parts are segmented using the Segment Anything Model (SAM), which isolates each part’s geometry for precise measurement. SAM’s capability to handle intricate shapes makes it ideal for caravan parts that require advanced segmentation.
For accurate measurement, we apply image processing techniques and use a reference object to convert pixel data into precise millimeter measurements. This ensures that all dimensions meet specified tolerances. If a part’s dimensions align with the tolerance range, it advances in the assembly line; otherwise, it’s flagged for rework, ensuring that only high-quality parts proceed.
Incorporating machine vision into CNC nesting inspections brings a range of significant benefits to the caravan manufacturing process:
Improved Accuracy: By automatically analyzing every piece with millimeter-level precision, machine vision eliminates human error and reduces the chance of defective parts reaching assembly. This level of accuracy is vital for maintaining quality in caravan assembly.
Speed and Efficiency: Machine vision systems operate continuously and at high speeds, inspecting each piece as soon as it’s cut. This real-time capability reduces downtime and enhances productivity, ensuring that quality control doesn’t slow down manufacturing.
Cost Savings: Fewer defective parts mean reduced rework and material waste, both of which contribute to substantial cost savings. In an industry where material efficiency directly impacts profitability, machine vision becomes a key asset.
Data Collection and Analysis: Each inspection generates data on part quality, which can be analyzed to identify recurring issues or patterns. This data can drive improvements in the CNC process itself, creating a feedback loop for continual quality enhancement.
Machine vision offers a game-changing approach to CNC nesting piece inspections, especially in industries like caravan manufacturing where precision is paramount. With automated inspections powered by high-resolution cameras and advanced algorithms, manufacturers can maintain stringent quality standards without compromising efficiency. By incorporating a reference object to achieve precise measurements, our solution overcomes one of the toughest challenges in machine vision.
For caravan manufacturers looking to enhance quality and reduce costs, exploring machine vision solutions for CNC processes can offer a significant competitive edge. As the technology continues to evolve, so too will the opportunities for accuracy, efficiency, and innovation in manufacturing.
